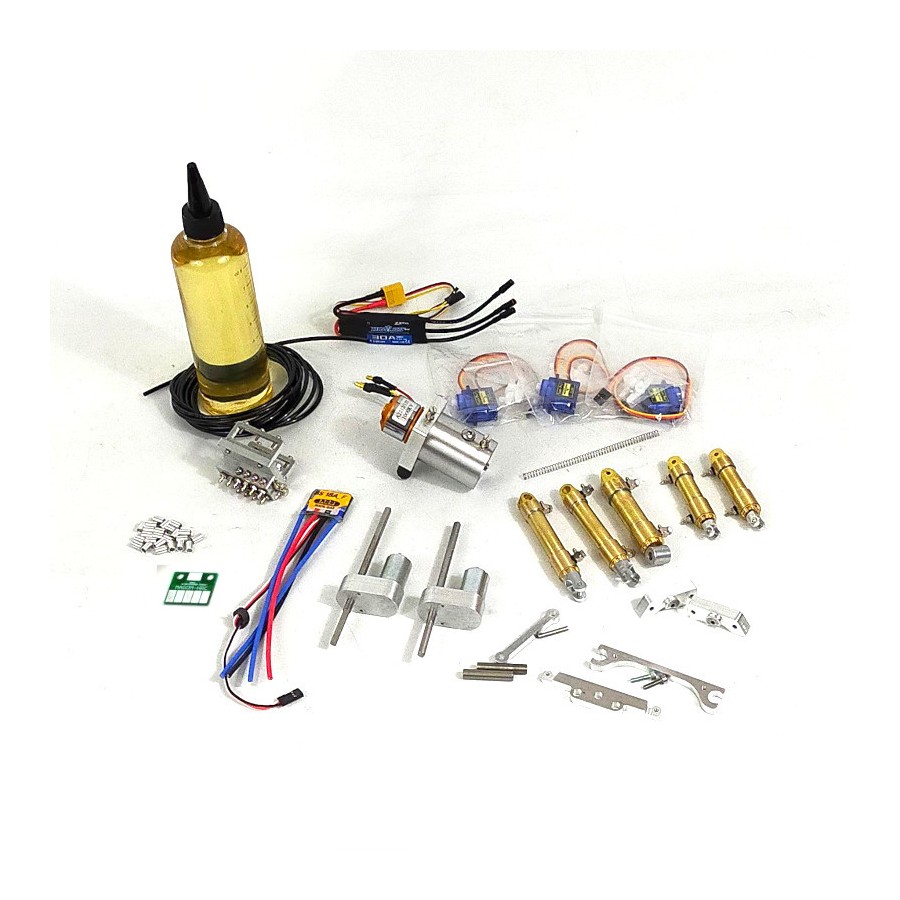

Complete Hydraulic Conversion Kit for HUINA 583 (1583)

Turn your HUINA 1583 loader into a 100% real hydraulic machine, with greater power, precision and realism.

This kit includes all necessary components to perform the complete professional hydraulic conversion, drastically improving the model’s strength, smoothness and control.

With standard modeling tools such as a soldering iron, screwdrivers and Allen keys, you can complete the conversion step by step yourself.

Designed and manufactured to ensure maximum compatibility, performance and reliability.

🔧 INCLUDED HYDRAULIC SYSTEM

✔ Brushless hydraulic pump with integrated tank

• Brushless motor included and installed
• Adjustable chrome fittings for 3 mm tubing
• 2 silent blocks
• 2 M4x4 pan head screws

✔ Special 3-way valve (double two-way)

• Front chrome straight fittings
• Side adjustable chrome fittings
• For 3 mm tubing

✔ Hydraulic components

• 3 meters of 3 mm tubing
• 250 ml hydraulic oil
• 24 ferrules for 3 mm tubing
• Protective spring for tubing

✔ Hydraulic cylinders (5 units)

With star cap and special rod ends:

• 2 x Steering (12 mm)
  • 65.15 mm closed
  • 96.5 mm open
  • Includes M2.5x8 screws (one per cylinder)
• 2 x Arm (12 mm)
  • 84.7 mm closed
  • 126.9 mm open
  • Includes M3x10 screws and M3x3 set screws (one per cylinder)
• 1 x Bucket (15 mm)
  • 74 mm closed
  • 107 mm open

Option to choose the cylinder tube material.

✔ Mechanical parts included

• Linkage rod to increase bucket travel
• Lower steering cylinder mount (includes 2 M3x12 screws)
• Upper steering cylinder mount
• Left and right lower bucket mounts
• 2 x M6x20 pins
• 1 x M3x20 steel pin
• 2 x M3x10 screws
• 2 x M2.5x8 screws

⚙ INCLUDED ELECTRONIC SYSTEM

✔ 3 x 9g micro servos for the valve

✔ Brushless 30A ESC for pump (with banana connectors)

✔ Brushless motor installed in pump

✔ BS18 brushed ESC for traction

✔ Connection board

✔ Traction upgrade kit (more power and speed)

AVAILABLE OPTIONS

• MAGOM HRC Wheels → Includes steel rims and rubber tires
• Transmitter option → Configured transmitter for the model + compatible receiver
• Rear suspension kit → Specific conversion for hydraulic system

🚜 Final result

• Real digging power
• Smooth and progressive movements
• Greater precision and control
• Professional scale experience

Turn your HUINA 583 into a high-performance hydraulic loader, ready to work like a real machine.

You can follow the assembly steps in our playlist.
